- Place of Origin: wenzhou
- Brand Name: 1paper
- Model Number: 038

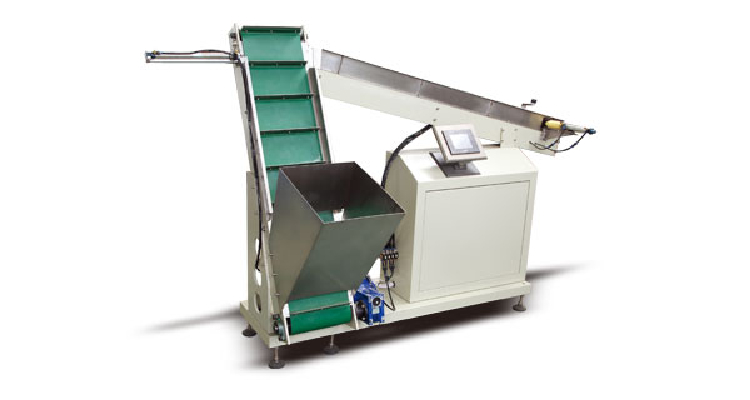

Application range：
It is suitable for separating paper from paper core in residual materials of cored roll toilet paper, making the recovery of waste paper convenient。
Main performance and structural features：
1、 Automatic material arranging, automatic conveying and automatic separating operations are carried out to realize the separation of paper from core；
2、PLC control and variable frequency speed adjustment are adopted with simple and easy-to-learn setting operations；
3、Checked belts are used for slope material arrangement, which is more effective and reliable；
4、Cylinder positioning core removal is adopted, which is free of maintenance with simple structure。
Performance technical parameters：
| Item/model | OPF-30 | |
| Separation specification | Outside diameter | Φ125×-Φ90×mm |
| Length | 20-80mm | |
| Separating speed | 15-40 pieces/minute | |
| Total power | 0.37KW | |
| Power supply type | Three-phase four-wire 380V 50Hz | |
| Machine noise | ≤80dB | |
| Air supply | 0.5-0.7 MPa | |
| Air consumption | 100-160L/min | |
| Outline dimensions | L2400×W1200×H1600mm | |
| Machine weight | About 200Kg | |
Note: The products of our company may always be updated, and are subject to change without notice (the real products shall prevail)！
