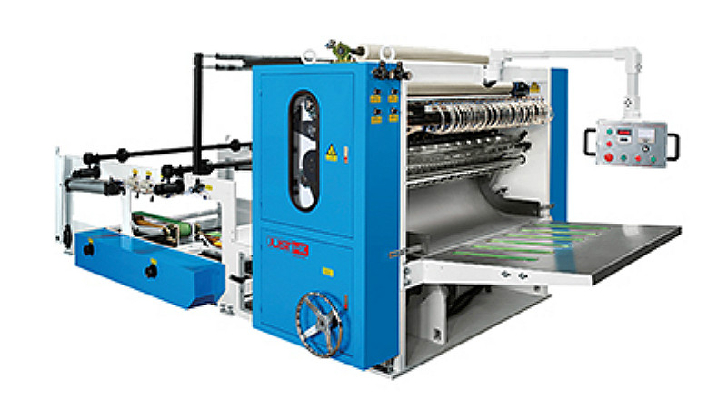

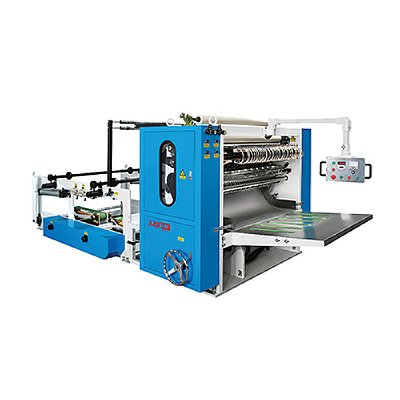

Drawn Facial Tissue Folding MachineIntroduction

Application range: It is suitable for automatic folding (cutting can also be available) of box-type drawn facial tissues and soft drawn facial tissues. Main technical parameters (I) Folding part: 1. Folding roller face size: 1350mm 2. Base paper quantity: 12~16g/m2 (two-layer) or 18~22g/m2 (one-layer) wood pulp paper 3. Product unfolding dimensions: 180/185/190/200±2mm X (110~210) 4. Product dimensions after folding: 90/93/95/100±2mm X (110~210) 5. Folding type: V type folding 6. Folding speed: 500~1000 pcs/min/row 7. Horizontal paper cutter type: The upper cutter includes 1 integral high-speed steel fixed knife at the front and 1 at the rear. The lower cutter includes 3 integral high-speed steel rotary knifes at the front and 3 at the rear. 8. Vertical paper cutter type: 5 pcs (optional) 9. Edge pressing device: 12 groups at the front and 12 at the rear (optional) (II) Embossing part: (optional) (III) Unwinding part: 1. Base paper max. width: 1300mm 2. Base paper max. diameter: 1200mm 3. Paper core inside diameter: 76.2mm 4. Two-layer pneumatic unwinder, with pneumatic paper feeder 5. Paper tension adjusting device: manual adjustment 6. Base paper left and right aligning device: manual adjustment (IV) Driving part: Synchronous toothed belt or flat belt is adopted for driving. (V) Control part: 1. Control mode: variable frequency speed control 2. Counting control mode: electric eye sensing, counter setting, left and right staggered counting device 3. The machine is provided with inching and emergency stop buttons. (VI) Vacuum system: 18.5KW Taiwan Longtech air pump 1 set (equipped with Siemens motor, two-stage muffler) (VII) Pneumatic system: Pneumatic system pressure: > 4kg/cm2 (provided by customers) (VIII) Other instructions 1. The standard configuration of all our equipment is one group of (i.e. two-layer) rear stand, that is, two reels of base paper can be fed. Because base paper for 2-7T machines has been cut and rolled, the two-layer rear stand is often adopted. The rear stands for 8-10T machines shall be selected according to customer requirements whether the tissues are to be made into two-layer or three-layer, whether the base paper is single-layer, two-layer or three-layer, etc. 2. Air pumps of the vacuum system for 2, 3T machines are 7.5KW homemade vortex air pumps, and those for other specifications are Taiwan Longtech air pumps. Note: The products of our company may always be updated, and are subject to change without notice (the real products shall prevail).
